# Throttle

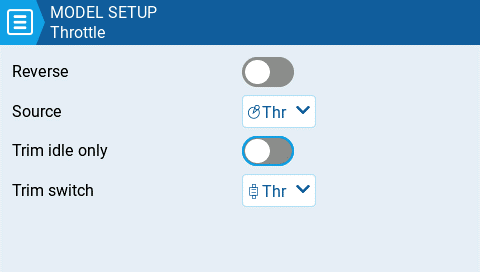

<figure><img src="https://77164042-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FUZeEhX4mYsDsoTCSjRyi%2Fuploads%2Fgit-blob-f06acda5a5d2d7dad551f311ec2d74b12890dd12%2Fthrottle.png?alt=media" alt=""><figcaption><p>Throttle page settings</p></figcaption></figure>

EdgeTX has to possibility to select a specific source and trim for the model throttle and allows for the following configuration options:

**Reverse:** When enabled, this option reverses the output direction of the configured throttle channel.

**Source:** The source that will be used for the throttle.

**Trim idle only**: When enabled, the throttle trim will only affect the bottom portion of the throttle band.

{% hint style="info" %}
For example, with **Trim idle only** enabled, the throttle stick at the lowest point might have a value of -80 and the center point will still be 0 and the highest point of 100. Without this enabled, the throttle stick at the lowest point might have a value of -80 however, the center point will be 20 and the highest point of 100.
{% endhint %}

**Trim switch:** The trim switch that will be used to trim the throttle. It is possible to substitute the throttle trim switch with the aileron, rudder, or elevator trim switches.
